Bitumen Jumbo Bags & Packaging Solutions in Iraq
Bwer Group is Iraq's leading supplier of industrial Bitumen Jumbo Bags (FIBC 300kg – 1000kg) and heavy-duty asphalt packaging solutions. Engineered specifically to withstand hot-filling up to 140°C–160°C and severe Iraqi summer temperatures (>50°C), our bitumen bags feature 100% meltable inner poly-liners. Designed for asphalt factories, oil refineries, and road construction projects across Erbil, Sulaymaniyah, Baghdad, Basra, and Kirkuk, our packaging guarantees zero bitumen leakage, eliminates drum residue waste, and slashes freight logistics costs by over 40%.
.jpg)
Serving Core Infrastructure & Energy Sectors
Tailored packaging solutions powering highway paving, refinery export, and asphalt batching across Iraq.
.jpg)
Asphalt Batching Plants
Direct melt-in jumbo bags feed asphalt plants in Erbil, Sulaymaniyah, and Baghdad without manual drum opening or decanting equipment.
.jpg)
Road & Highway Building
Supplying major road contractors and public works departments across Iraqi governorates with stable, easily transportable bitumen bags.
.jpg)
Bitumen Refineries
Hot-filling solutions directly at oil refinery terminals in Basra and Kirkuk, supporting Penetration 60/70, 80/100, and PMB grades.
.jpg)
Export & Maritime Logistics
Compact containerized bulk shipping solutions compliant with UN international dangerous goods regulations for maritime export.
Supported Bitumen & Asphalt Grades
Bwer Bitumen Jumbo Bags are fully certified for packaging all standard paving, industrial, and polymer-modified bitumen grades.
Bitumen Penetration 60/70
The primary paving grade used across highway paving projects in Erbil, Sulaymaniyah, Baghdad, and Basra. Fully compatible with our melt-in inner liners.
Bitumen Penetration 80/100
Softer paving grade ideal for cold weather conditions and mountain road paving in Penjwen, Soran, and northern mountainous terrains.
Bitumen Penetration 40/50
Harder paving grade engineered for heavy traffic expressways, truck transport corridors, and extreme heat areas in southern Iraq.
Polymer Modified Bitumen (PMB)
SBS-modified elastomeric bitumen binders for airport runways, heavy logistics hubs, and high-durability bridge deck pavements.
Viscosity Grade (VG-10 / VG-30)
Viscosity-standardized bitumen grades designed for precise temperature-susceptibility control on modern highway projects.
Oxidized Bitumen (R85/25 & R90/15)
High-softening point industrial blown bitumen used for membrane waterproofing, anti-corrosion pipe coating, and roofing insulation.
Packaging Operations & Product Gallery
Explore our bitumen jumbo bag engineering, hot-filling lines, warehouse stacking, and site applications in Iraq.

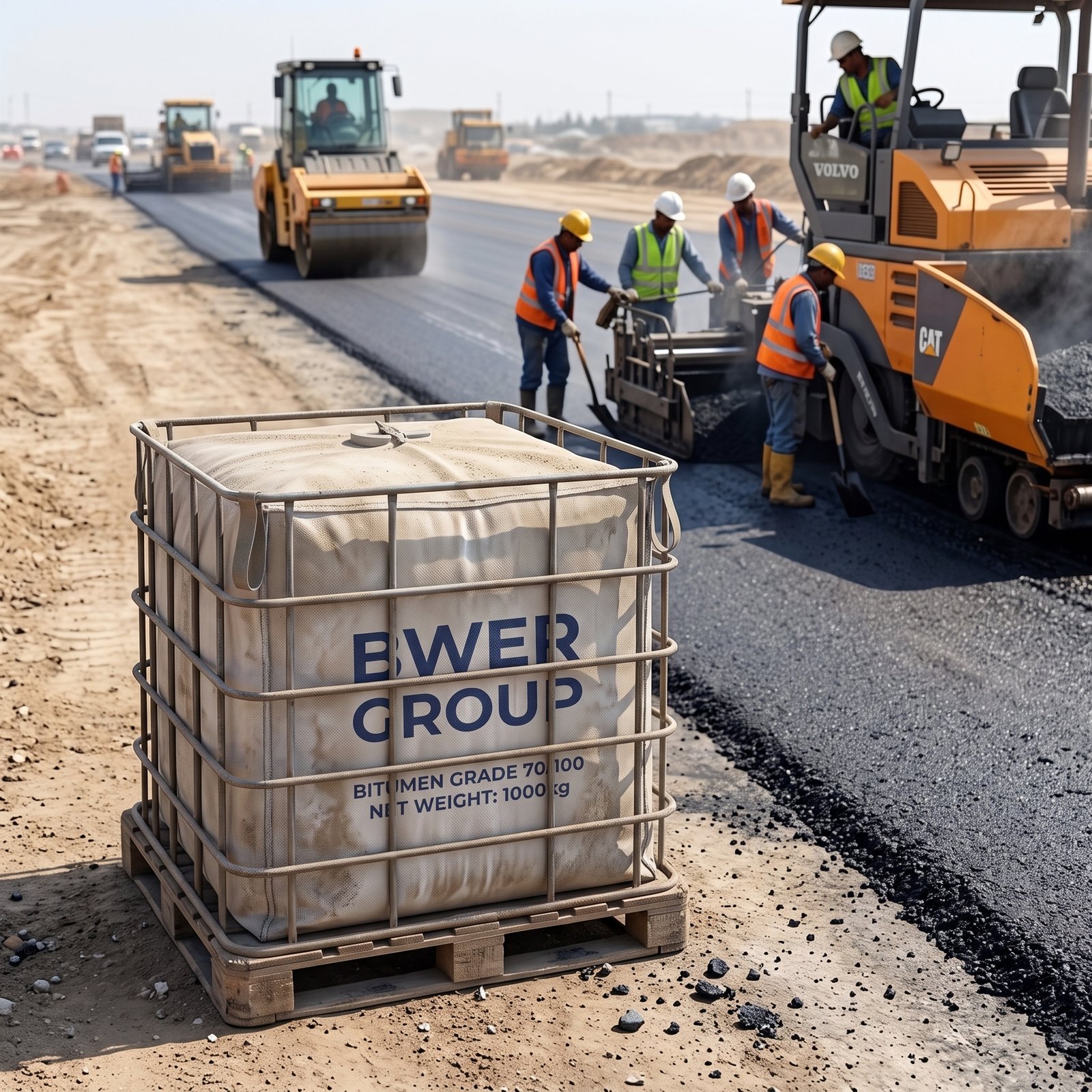

Road Paving & Highway Site Deployment
1000kg Bitumen jumbo bags deployed on active road construction sites alongside Volvo & CAT asphalt pavers in Iraq.

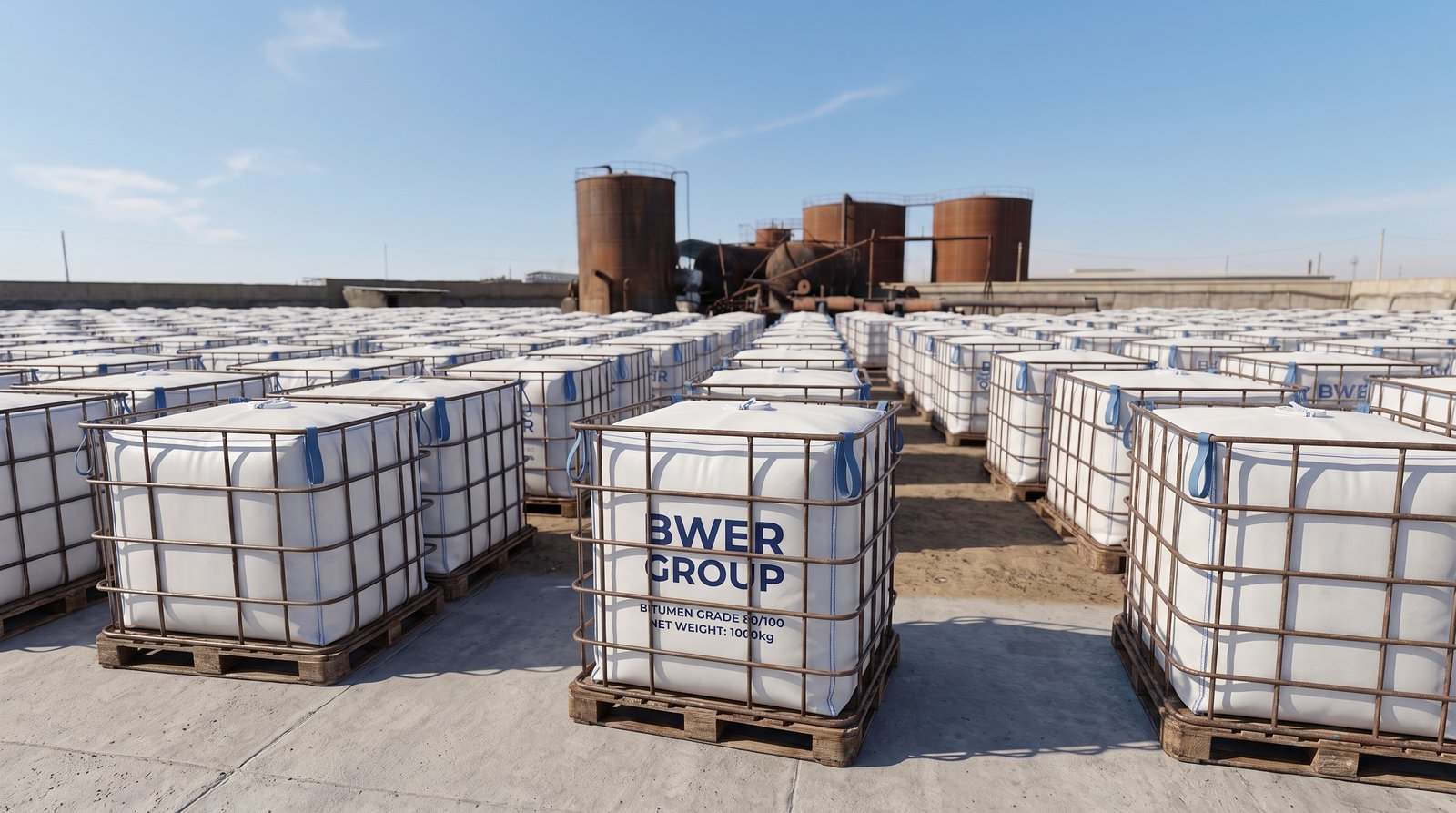

Refinery Bulk Storage & Yard Stacking
Heavy-duty outdoor storage yards holding hundreds of 1-Ton bitumen bags at refinery terminals in Basra and Kirkuk.
.jpg)

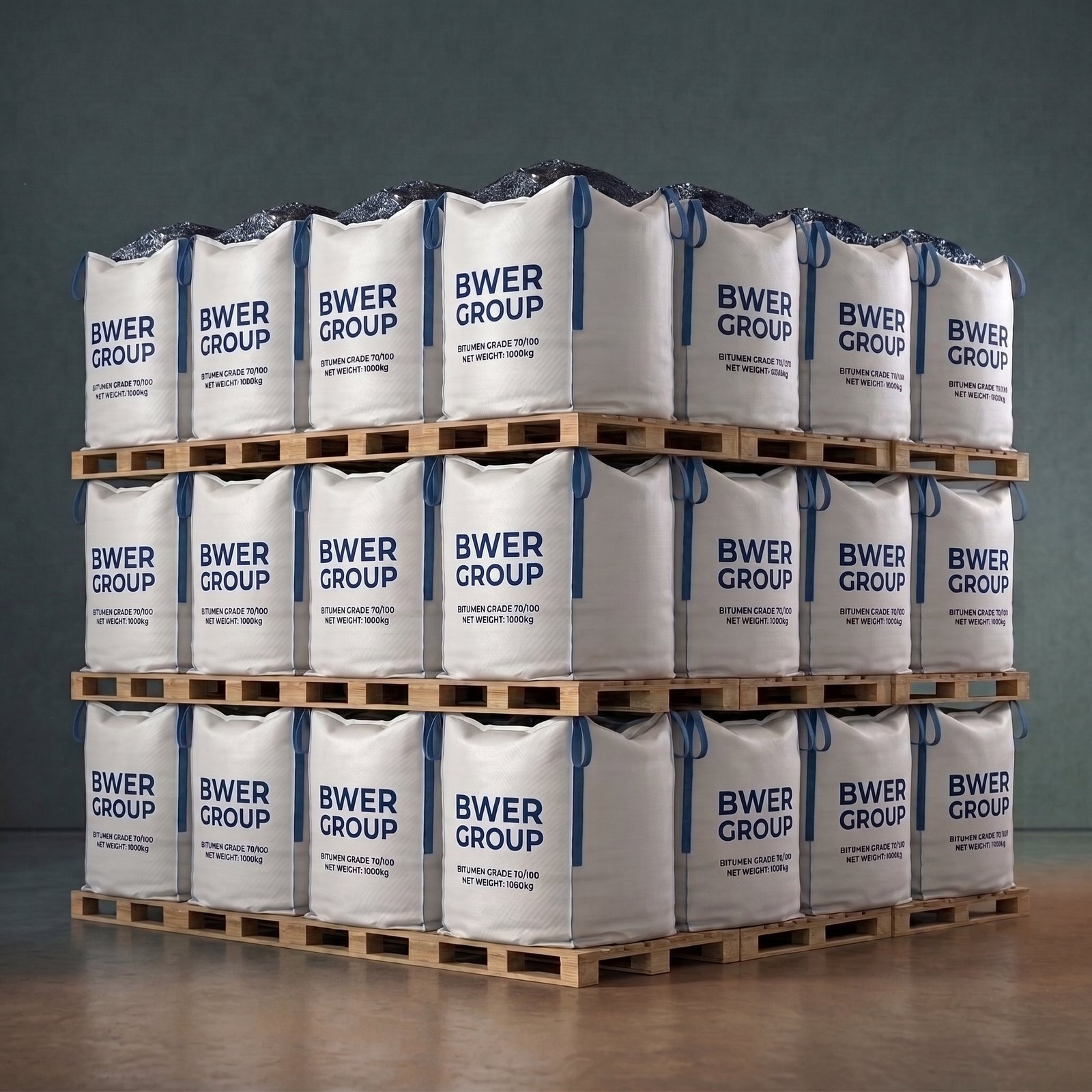

Multi-Tier Vertical Warehouse Stacking
High-density 3-layer vertical pallet stacking demonstrating bag structural rigidity and space-saving design.

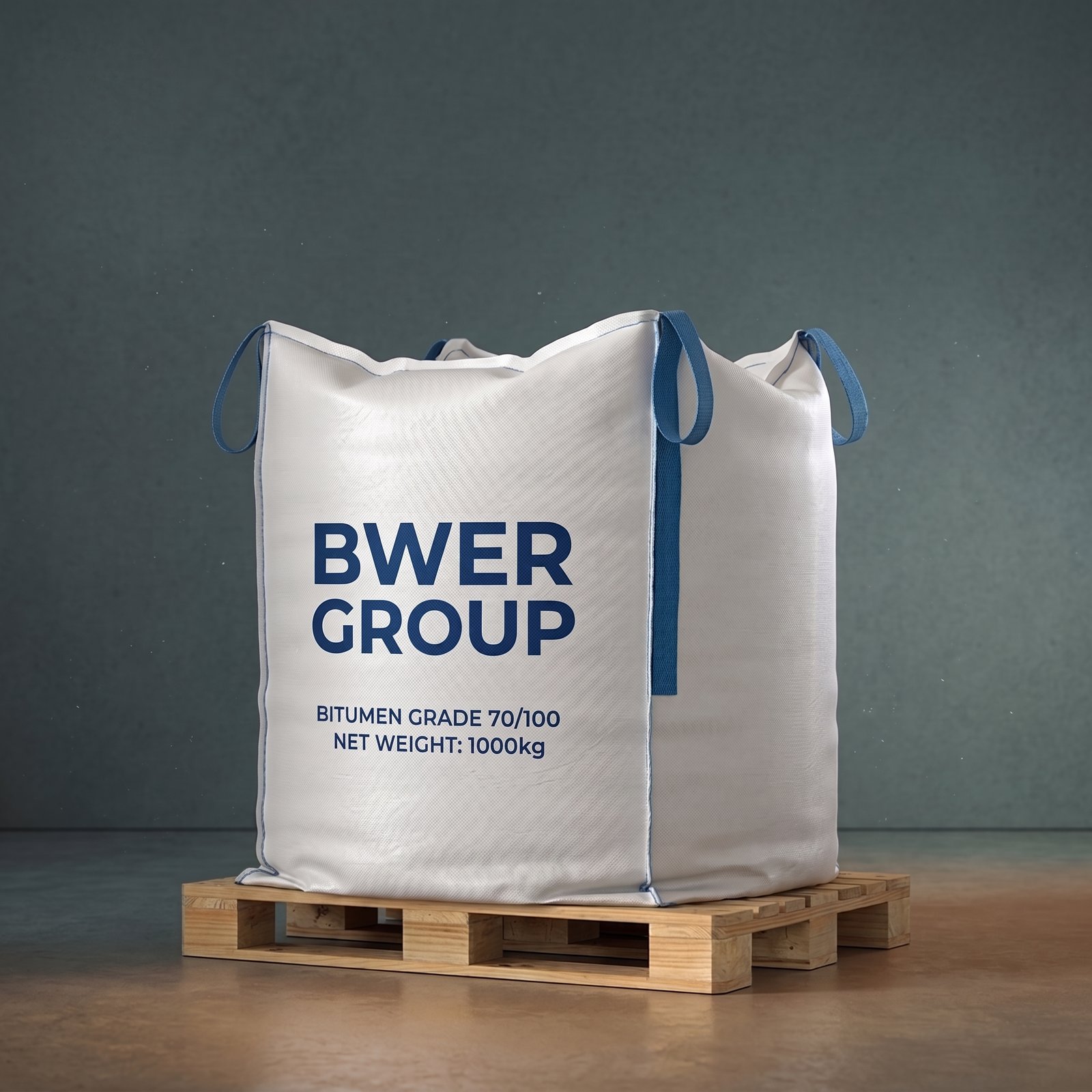

FIBC 1000kg 4-Loop Studio Model
Standard 1-Ton bitumen bulk bag featuring 4-corner blue lifting loops and 100% meltable poly-liner.

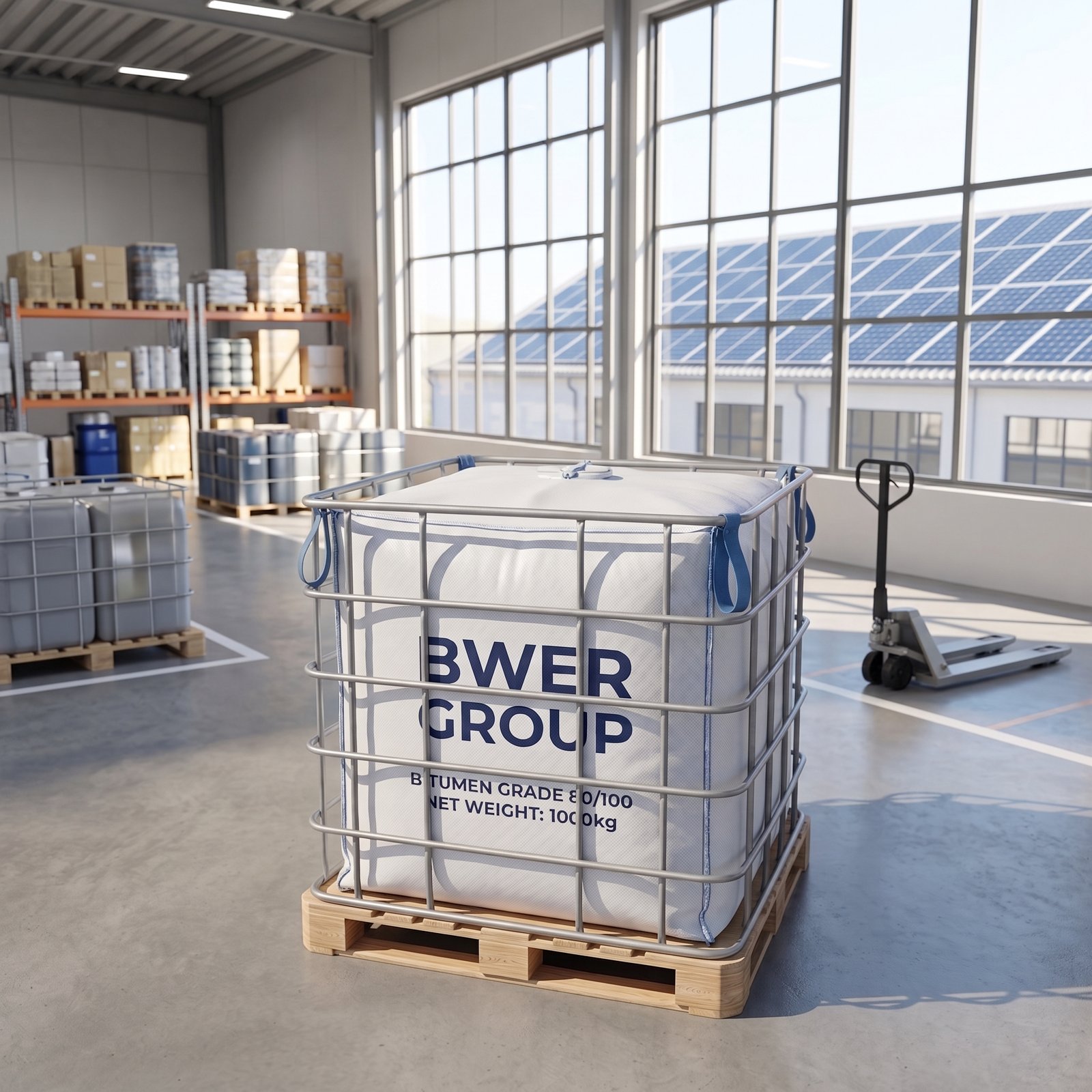

Asphalt Factory Indoor Plant Operations
Clean indoor facility handling and pallet jack transport inside asphalt batching plant melter halls.
.jpg)

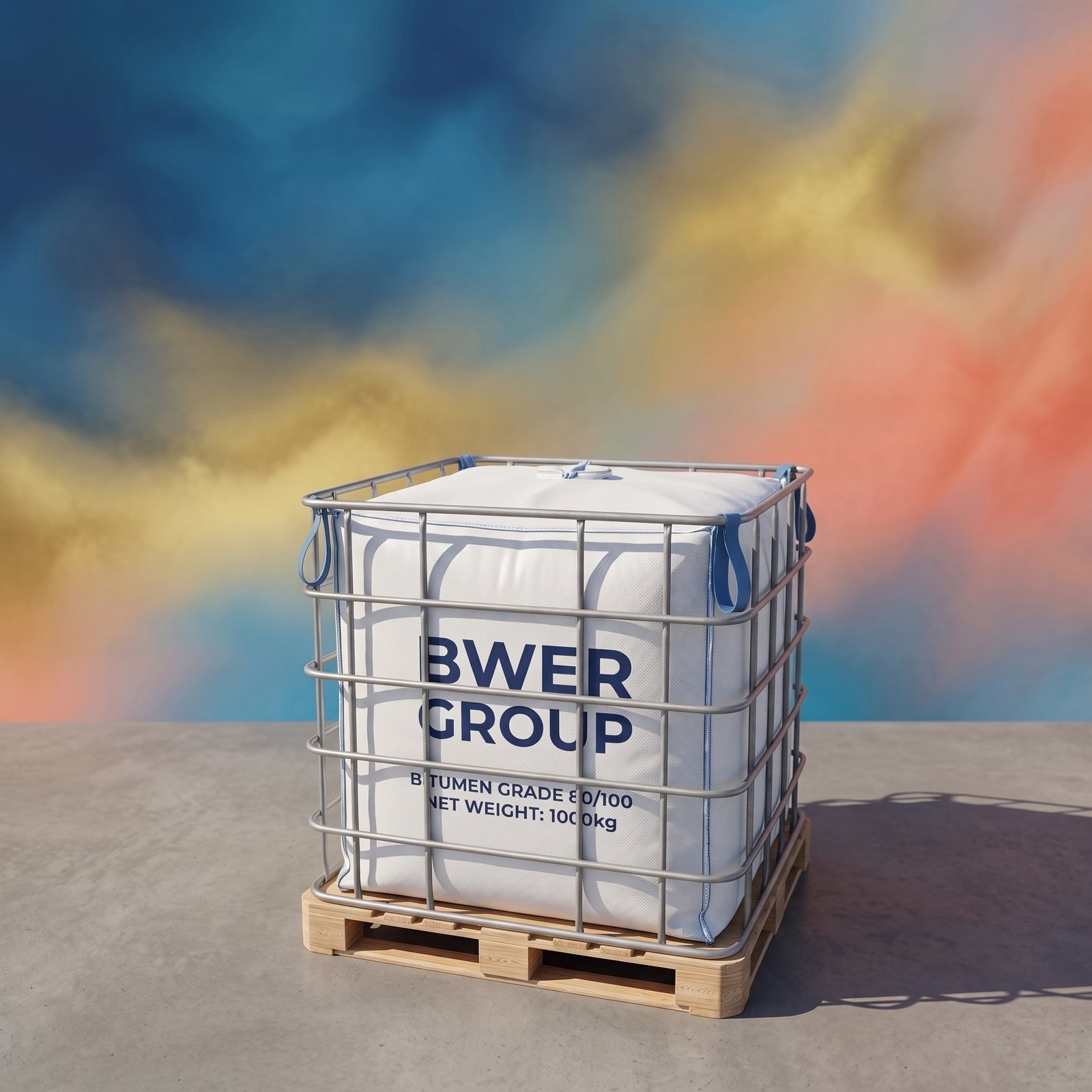

Steel Cage Frame Protection System
Optional rigid outer cage container offering maximum support for soft bitumen grade transportation.
.jpg)

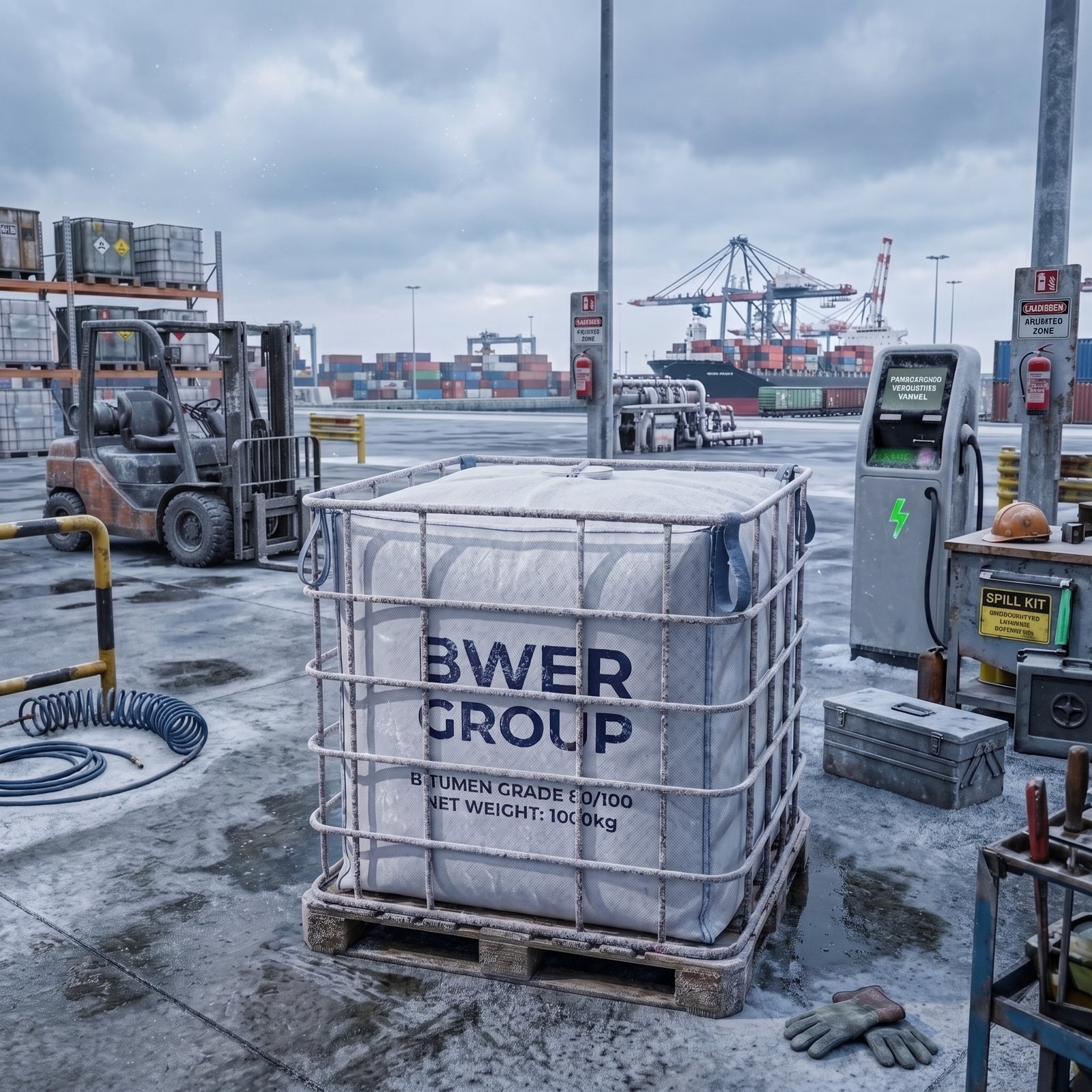

Extreme Thermal & Environment Testing
All-weather performance tested under extreme thermal gradients and heavy port site conditions.

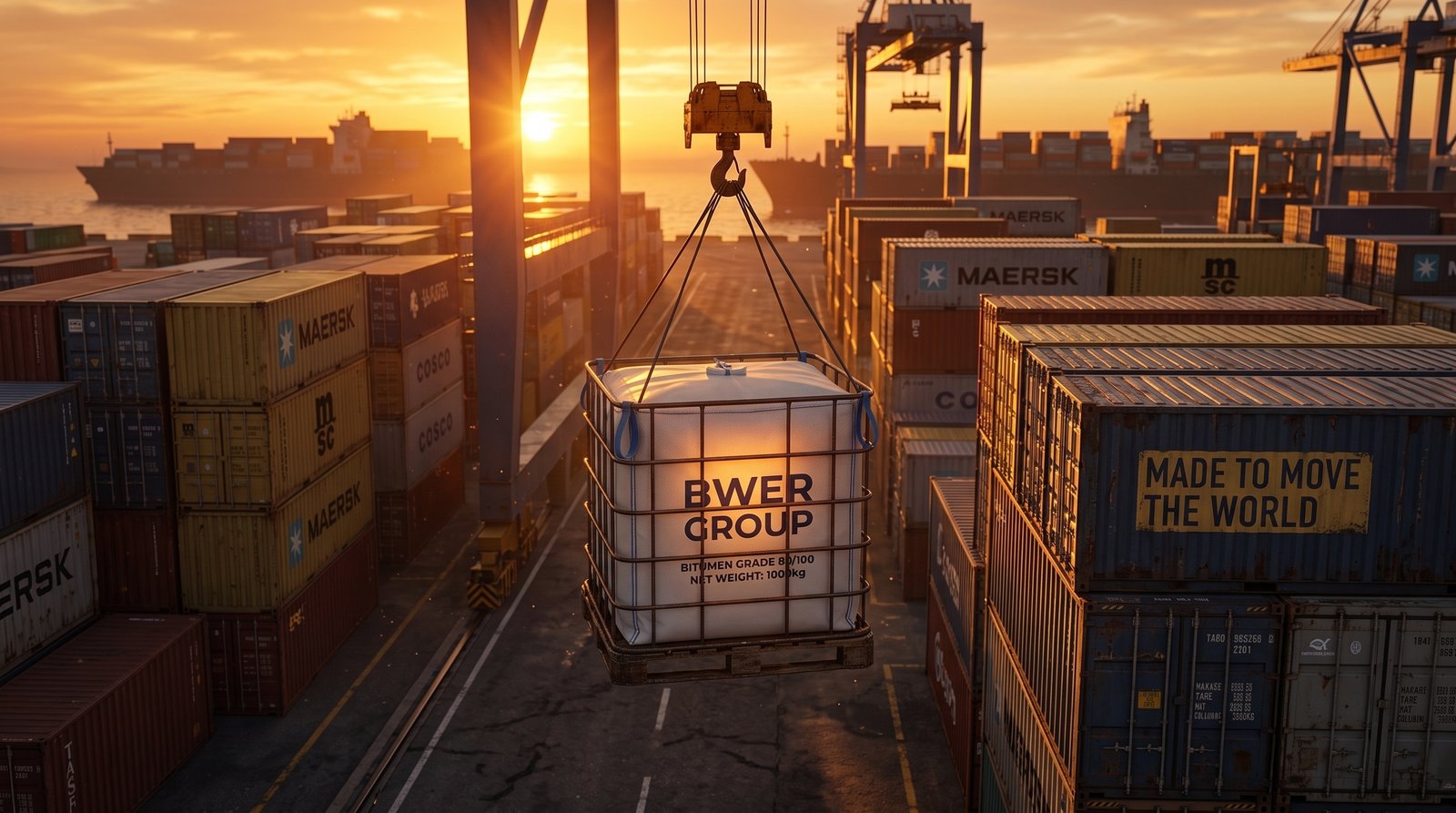

Maritime Port Crane Bulk Hoisting
Cinematic container terminal hoisting for international export and maritime bulk cargo shipping.
.jpg)
UV-Stabilized Polypropylene Fabric Weave
Microscopic view of 220 GSM high-tenacity woven PP fabric with integrated UV solar inhibitors.
Why Bwer Bitumen Bags Outperform
Revolutionizing asphalt handling with zero waste, enhanced safety, and unmatched thermal endurance.
Direct Melt-In Technology
The entire inner poly-liner dissolves completely inside asphalt plant melting boilers between 120°C and 160°C. No toxic residue is generated, preserving pure penetration grade properties (60/70 & 80/100).
100% Zero Bitumen Leakage
Double-welded hermetic inner film barriers combined with high-density PP outer fabric guarantee zero bitumen seepage or softening, even under summer heat exceeding 50°C across Iraq.
200 KLY UV Protection
Compounded with high-grade ultraviolet inhibitors (150–200 KLY), outer bags withstand long-term outdoor sunlight exposure in Iraqi project yards without fiber degradation or splitting.
Self-Standing & Stackable
Engineered with a rigid square bottom layout and internal baffle options, enabling safe vertical stacking up to 3 tiers high in storage yards and flatbed shipping trucks.
5:1 & 6:1 Safety Factor
Reinforced 4-corner lifting webbing tested to exceed 5 times working load limit (SF 5:1), ensuring safe crane and forklift hoisting on active construction sites.
40% Logistics Cost Cut
Eliminating heavy steel drum tare weight increases net bitumen freight per container from 16 Tons up to 22 Tons, dramatically lowering shipping and handling overhead.
Product Specification Matrix
Comprehensive dimensional, material, and thermal performance parameters for Bwer Bitumen Bags.
| Model Code | Payload Capacity | Dimensions (L×W×H) | Inner Liner Type | Liner Melting Point | Max Hot-Fill Temp | Outer Fabric GSM | Safety Factor |
|---|---|---|---|---|---|---|---|
| BWER-BJB-300 | 300 kg | 75 × 75 × 85 cm | Meltable PE Film | 125°C ± 5°C | 140°C | 160 GSM | 5:1 SF |
| BWER-BJB-600 | 600 kg | 90 × 90 × 95 cm | High-Temp Poly-Liner | 130°C ± 5°C | 145°C | 180 GSM | 5:1 SF |
| BWER-BJB-800 | 800 kg | 95 × 95 × 105 cm | Enhanced EVOH Melt-In | 135°C ± 5°C | 150°C | 200 GSM | 5:1 / 6:1 SF |
| BWER-BJB-1000 | 1000 kg (1 Ton) | 100 × 100 × 115 cm | Reinforced Meltable PE/EVOH | 140°C ± 5°C | 160°C | 220 GSM Heavy | 6:1 Heavy SF |
Bitumen Jumbo Bags vs. Traditional Steel Drums
See how switching to Bwer Bitumen Bags eliminates waste and reduces operational expenses.
| Comparison Parameter | Bwer Bitumen Jumbo Bag | Traditional Steel Drums | Bulk Bitumen Tanker |
|---|---|---|---|
| Net Payload per 20ft Container | 20.0 – 22.0 Metric Tons | 15.5 – 16.0 Metric Tons | 18.0 – 20.0 Metric Tons |
| Residual Bitumen Loss / Waste | 0% (100% Bag & Liner Melted) | 3% – 5% Left Inside Steel Drum | 1% – 2% Tanker Wall Residual |
| Decanting & Heating Energy Cost | Low (Direct Feed into Melter) | High (Labor Intensive Decanting) | Requires Continuous Thermal Heating |
| Empty Packaging Storage Space | Minimal (Folded Flat on Pallets) | Huge Yard Area Required | Fixed Heated Tank Storage Required |
| Environmental & Ecological Impact | Eco-Friendly Zero Waste | Hazardous Empty Steel Drum Scrap | High Energy Heating Emissions |
Frequently Asked Questions
Everything you need to know about Bitumen Jumbo Bags and packaging logistics in Iraq.
What capacities of Bitumen Jumbo Bags are supplied by Bwer Group in Iraq?
We supply standard payload capacities of 300kg, 600kg, 800kg, and 1000kg (1 Ton) Bitumen Jumbo Bags (FIBC). Custom sizes can also be engineered to match your asphalt factory melting vessel dimensions.
Does the meltable inner liner affect the penetration grade or quality of asphalt?
No. Our meltable poly-liners are manufactured from pure high-compatibility polyethylene resins designed to fully blend into the bitumen matrix at 120°C–160°C without altering penetration values (60/70 or 80/100), ductility, or softening point.
What is the maximum hot-filling temperature for filling bitumen jumbo bags?
Bwer Bitumen Jumbo Bags can accept hot-filling directly from refineries at controlled temperatures between 140°C and 160°C depending on the selected inner liner model (BWER-BJB-1000 supports up to 160°C).
How do these bags withstand summer heat (>50°C) during outdoor storage in Basra or Erbil?
Our outer woven PP fabric features 200 KLY UV solar stabilization and high tensile strength to prevent bag softening, stretching, or splitting under intense solar radiation in southern and northern Iraq.
How are Bitumen Jumbo Bags unloaded at an asphalt batching plant?
Bags are hoisted by crane or forklift via 4 corner loops and lowered directly into the asphalt plant melting hopper. Once inside the melter, the inner liner dissolves while the outer bag melts or is peeled off effortlessly.
What is the safety factor rating for crane lifting?
All Bwer Bitumen Bags are manufactured with safety factor ratings of 5:1 (standard single-trip) or 6:1 (heavy duty multi-trip/export), tested to withstand 5 to 6 times their working load rating without web failure.
Can Bwer Group deliver bulk bitumen bags directly to project sites across Iraq?
Yes! We provide rapid nationwide truck delivery to asphalt factories, construction yards, and refineries in Erbil, Sulaymaniyah, Duhok, Kirkuk, Baghdad, Basra, Najaf, and Karbala.
Order Bitumen Jumbo Bags & Packaging Solutions
Connect directly with Bwer Group's industrial packaging team to obtain instant price quotes, customized meltable liner specifications, and fast logistics dispatch across Iraq.
