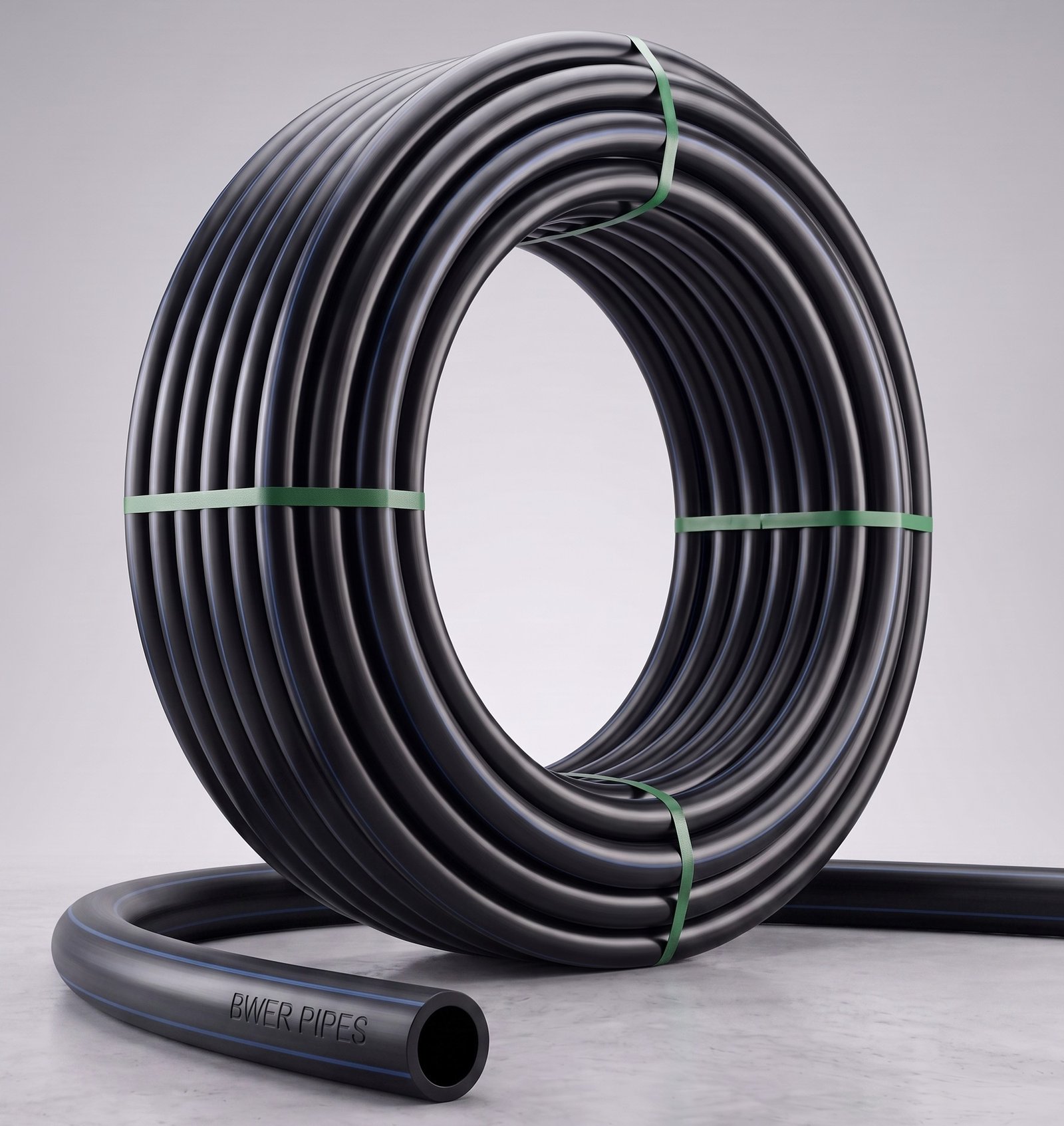

PE100 Polyethylene (HDPE) Coiled Pipe Rolls (16mm – 160mm)
Bwer Pipes is Iraq's premier manufacturer and market leader in premium PE100 Polyethylene (HDPE) coiled pipe rolls. Extruded on Iraq's highest-capacity German-engineered production lines in Kalar, we deliver factory-direct 50m to 500m joint-free coils manufactured exclusively from 100% prime virgin bimodal PE100 & PE100-RC resins (Sabic & Borealis certified). Our engineered PE100 Polyethylene (HDPE) coiled pipe rolls dominate Iraq's most demanding sectors—from high-density agricultural drip irrigation and municipal drinking water mains to high-pressure oil & natural gas feeds and trenchless HDD pulling.
.jpg)
Dominating Iraq's Core Strategic Sectors
Engineered to meet the exact infrastructure demands of government ministries, agricultural enterprises, and international oil contractors across Iraq.
Agricultural & Irrigation
Dominating Iraq's agricultural sector with high-flexibility 16mm–110mm PE100 Polyethylene (HDPE) coiled pipe rolls for drip mains, pivot feeder lines, and greenhouse coils formulated with 2.5% carbon black for intense summer UV endurance.
Oil, Gas & Energy Feeds
Yellow-striped PE100 Polyethylene (HDPE) coiled pipe rolls for high-pressure natural gas distribution networks, flare gas gathering lines, and oilfield chemical injection lines operating up to PN25.
Municipal Potable Water
Blue-striped non-toxic drinking water supply rolls certified under ISO 4427-2. Seamless 500m lengths eliminate underground pipe joints and safeguard drinking water against contamination.
Trenchless HDD Pulling
Heavy-duty PE100-RC crack-resistant rolls designed for horizontal directional drilling (HDD) under rivers, highways, and rocky soil terrain without requiring sand bedding backfill.
German Multi-Layer Extrusion of PE100 Polyethylene (HDPE) Coiled Pipe Rolls
Bwer Pipes operates Iraq's premier manufacturing complex equipped with state-of-the-art German co-extrusion multi-manifold feedblocks. Our automated gravimetric dosing systems and real-time ultrasonic wall-thickness scanners extrude four advanced formulations of PE100 Polyethylene (HDPE) coiled pipe rolls, engineered to exceed international ISO 4427-2, EN 12201-2, DIN 8074/8075, and PAS 1075 Type 1/2 engineering standards.
.jpg)
1. Single-Layer Solid Black PE100 Polyethylene (HDPE) Coiled Pipe Rolls
Formulated with 2.5% ± 0.5% finely dispersed Carbon Black nanoparticles (particle size < 25nm) per ISO 6964 standards. Engineered specifically to withstand Iraq's harsh solar ultraviolet radiation and scorching summer ambient temperatures exceeding 55°C. Serves as the national benchmark for agricultural drip irrigation feeder mains, micro-irrigation laterals, and municipal fluid conveyance.
2. 2-Layer Striped PE100 Polyethylene (HDPE) Coiled Pipe Rolls
Co-extruded through dual-stream German crosshead dies with four integral longitudinal identification stripes permanently molecular-fused into the pipe outer skin. Eliminates post-production painting, taping, or surface degradation. Ensures instant underground utility recognition for municipal civil engineers, natural gas utilities, and oilfield contractors across Iraq.
3. 3-Layer PE100 Polyethylene (HDPE) Coiled Pipe Rolls (Tri-Layer Multi-Structure)
Iraq's first and most sophisticated 3-layer co-extruded piping system, manufactured simultaneously through concentric German multi-manifold dies. Integrates three specialized functional layers without adhesive interfaces, maximizing structural safety, scratch resistance, and fluid hydraulic efficiency.

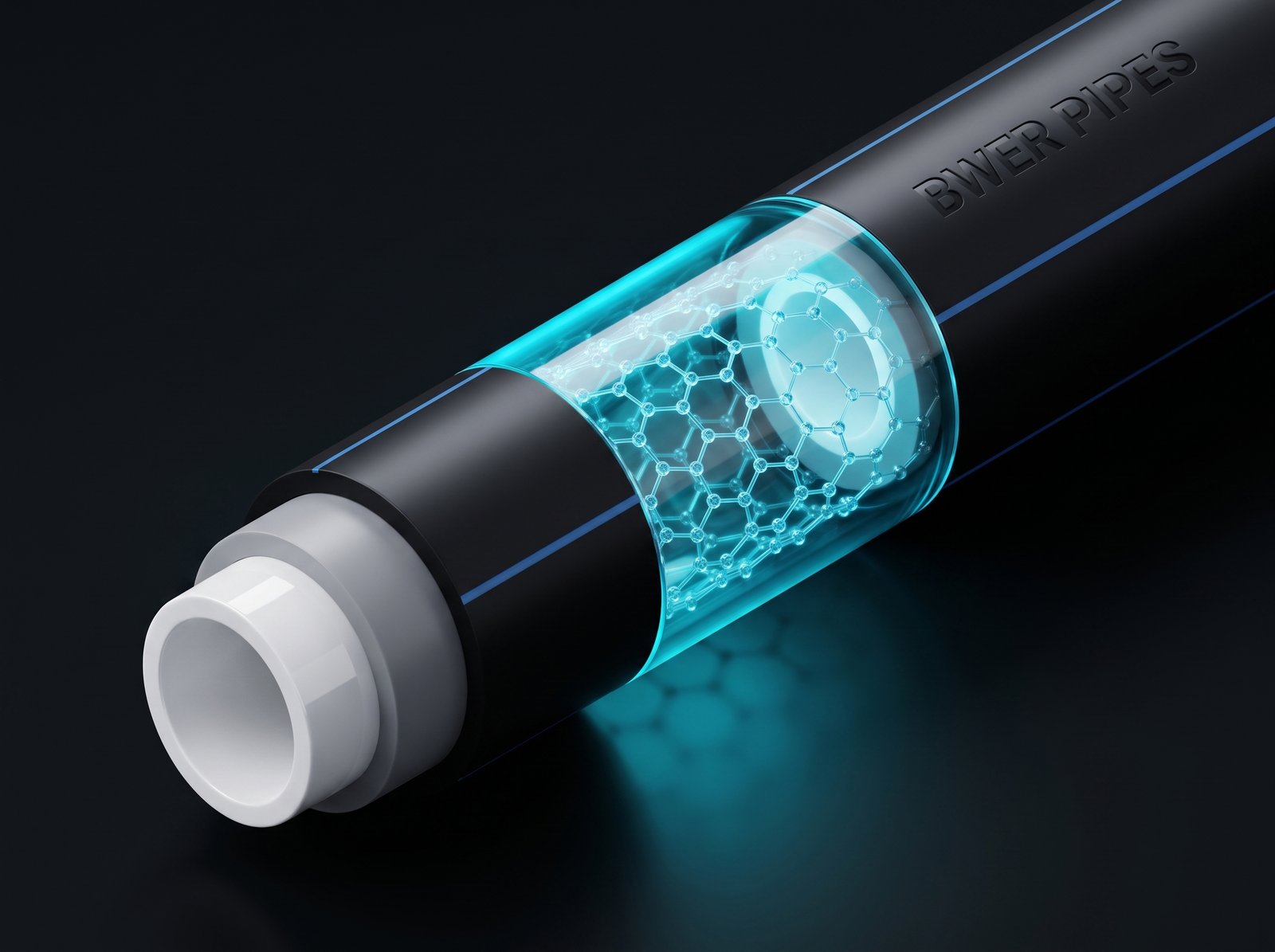

4. PE100-RC Polyethylene (HDPE) Coiled Pipe Rolls (Trenchless HDD & Sandless Bedding)
The pinnacle of underground piping engineering in Iraq. Formulated from specially modified hexene/octene comonomer PE100-RC resins providing extraordinary resistance to Slow Crack Growth (SCG) under point-load stresses. Certified according to PAS 1075 Type 1 and Type 2 standards for trenchless Horizontal Directional Drilling (HDD) and sandless backfill bedding directly in native excavated Iraqi soils.
Uncompromising Polymer Purity: 100% Virgin PE100 Resins
At Bwer Pipes, quality begins at the molecular level. Our PE100 Polyethylene (HDPE) coiled pipe rolls are extruded exclusively from 100% prime virgin bimodal PE100 resin granules (Sabic & Borealis certified). We strictly enforce a zero-tolerance policy against recycled plastic waste, regrind scrap, or low-grade fillers.
Guaranteed 100% pass rate across all Iraqi Central Organization for Standardization & Quality Control (COSQC) hydrostatic burst, melt flow index (MFI), and density laboratory tests.
Full international compliance with ISO 4427-2, DIN 8074/8075, and EN 12201 European laboratory standards for long-term hydrostatic strength (MRS 10 MPa).
Pure virgin raw materials guarantee uniform molecular chain alignment, eliminating micro-voids, brittlement risks, and premature stress cracking under hot Iraqi soils.
Supported by full 3.1 quality inspection certificates and factory test reports accompanying every shipment to government and private tenders across Iraq.

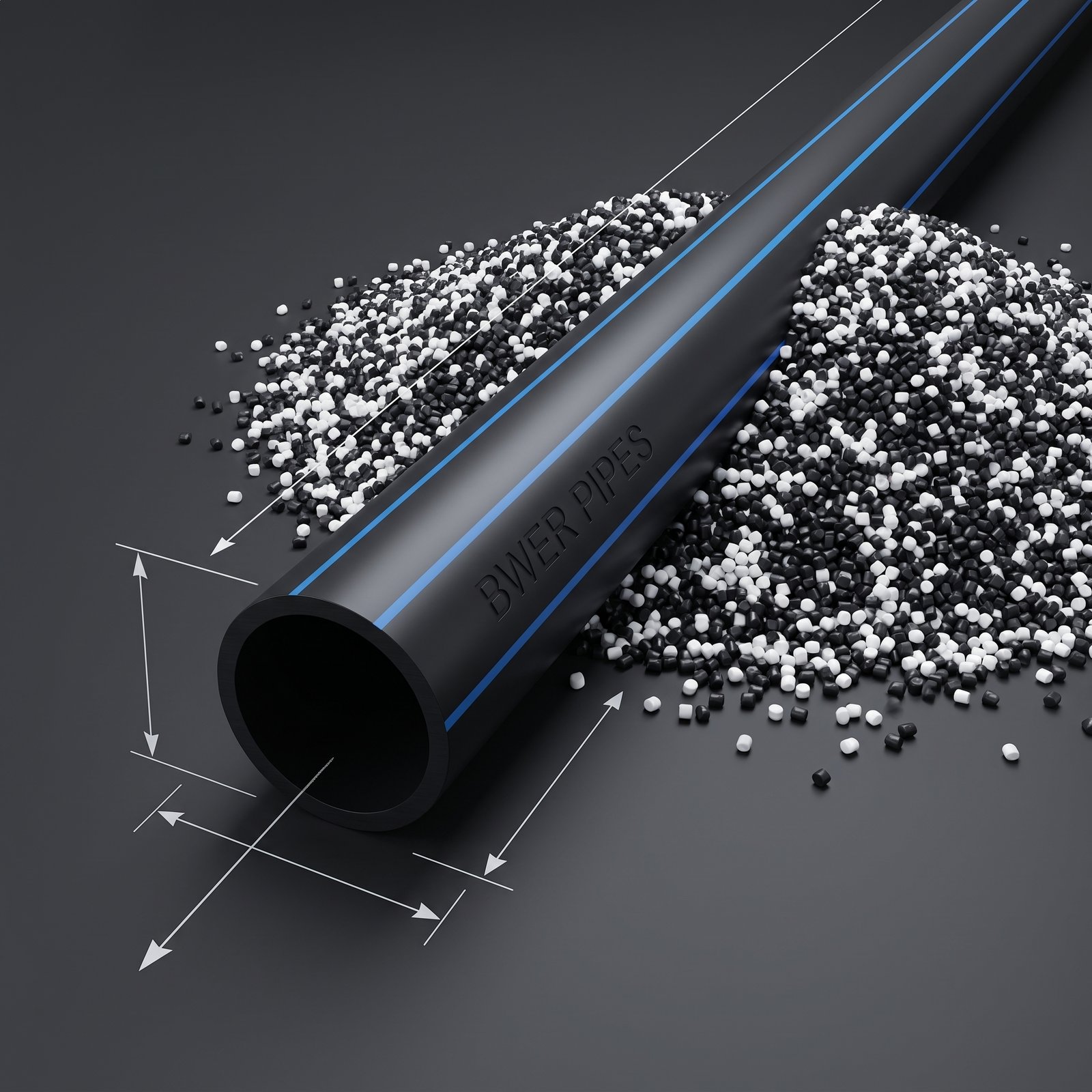

100% Prime Virgin PE100 & Carbon Black Granules
Bwer Pipes strictly rejects low-grade recycled plastic waste. Our PE100 Polyethylene (HDPE) coiled pipe rolls are extruded exclusively from 100% prime virgin bimodal PE100 resins (Borealis & Sabic grade) compounded with 2.5% carbon black pellets to guarantee zero micro-voids, optimal stress crack resistance, and 100-year longevity under Iraq's hot soil conditions.
Virgin Pellets & Cross-Section
Zero Micro-Void Extrusion

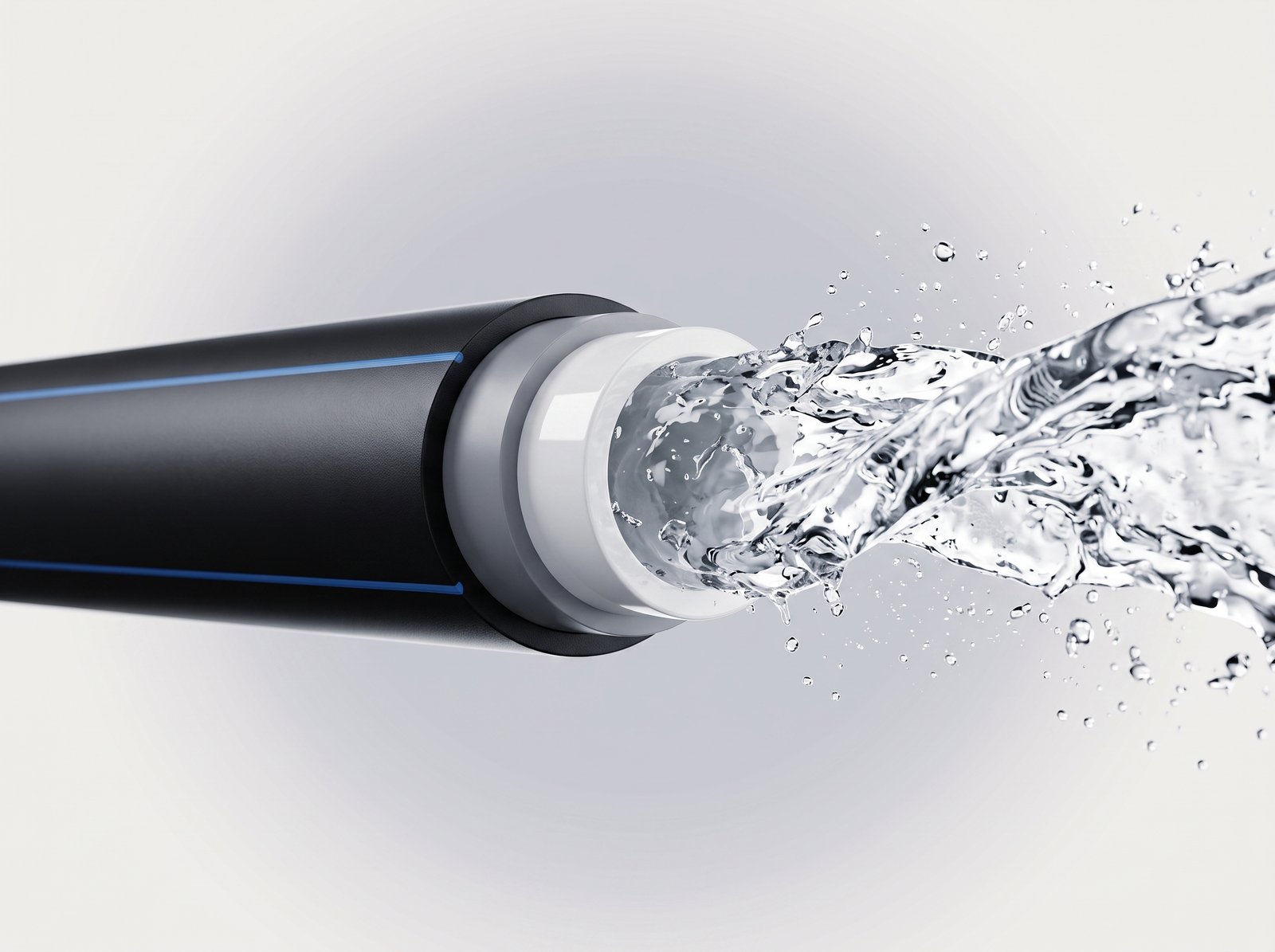

High Hydrostatic Pressure & Smooth Flow Rates
Tested under burst pressures exceeding PN25 operating limits. Smooth interior wall (Hazen-Williams C = 150) prevents bio-film attachment and mineral incrustation, maintaining peak flow rates and lowering long-term pumping energy costs for over a century.

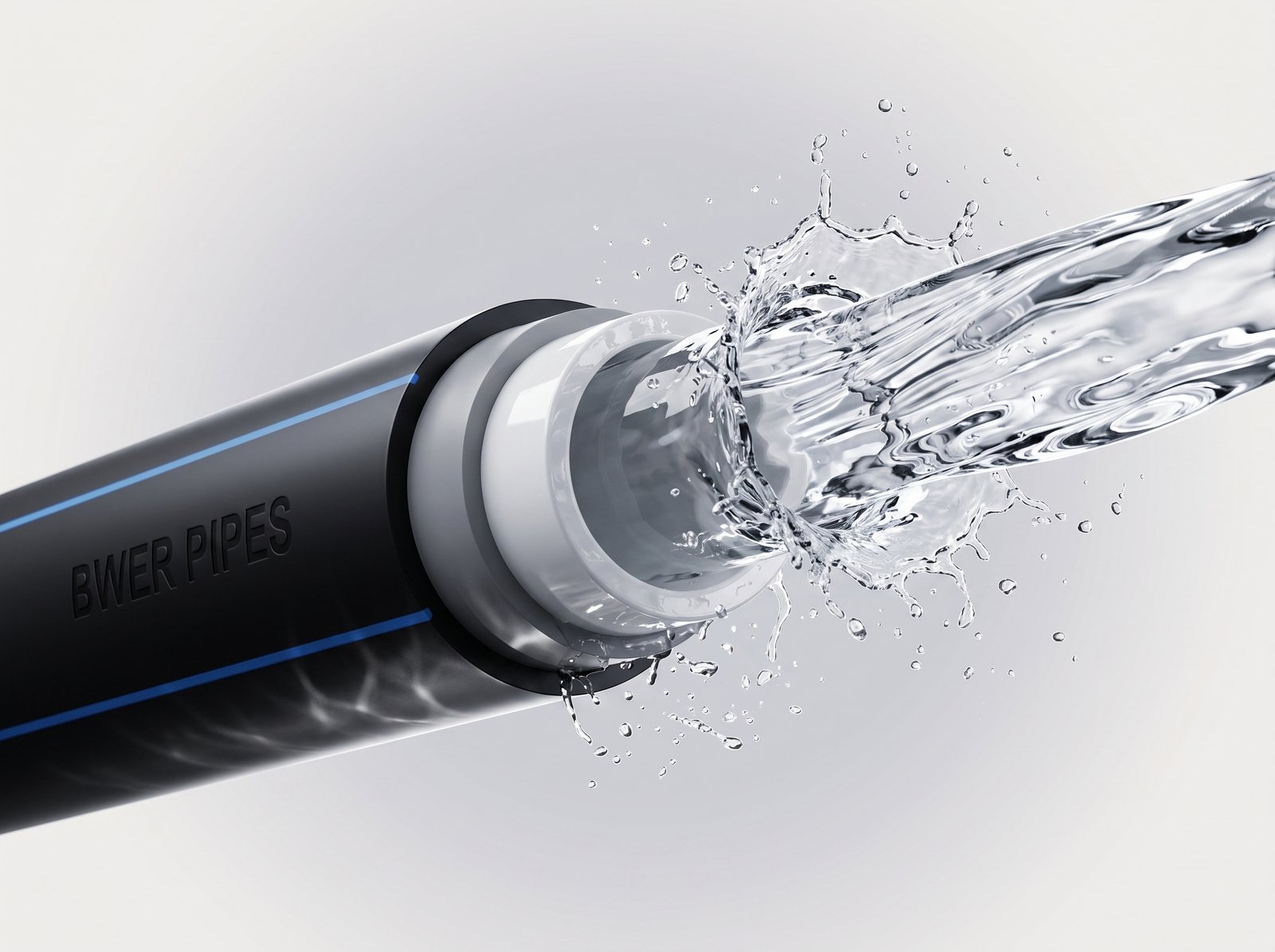

High Water Discharge Flow
PN25 Pressure Endurance

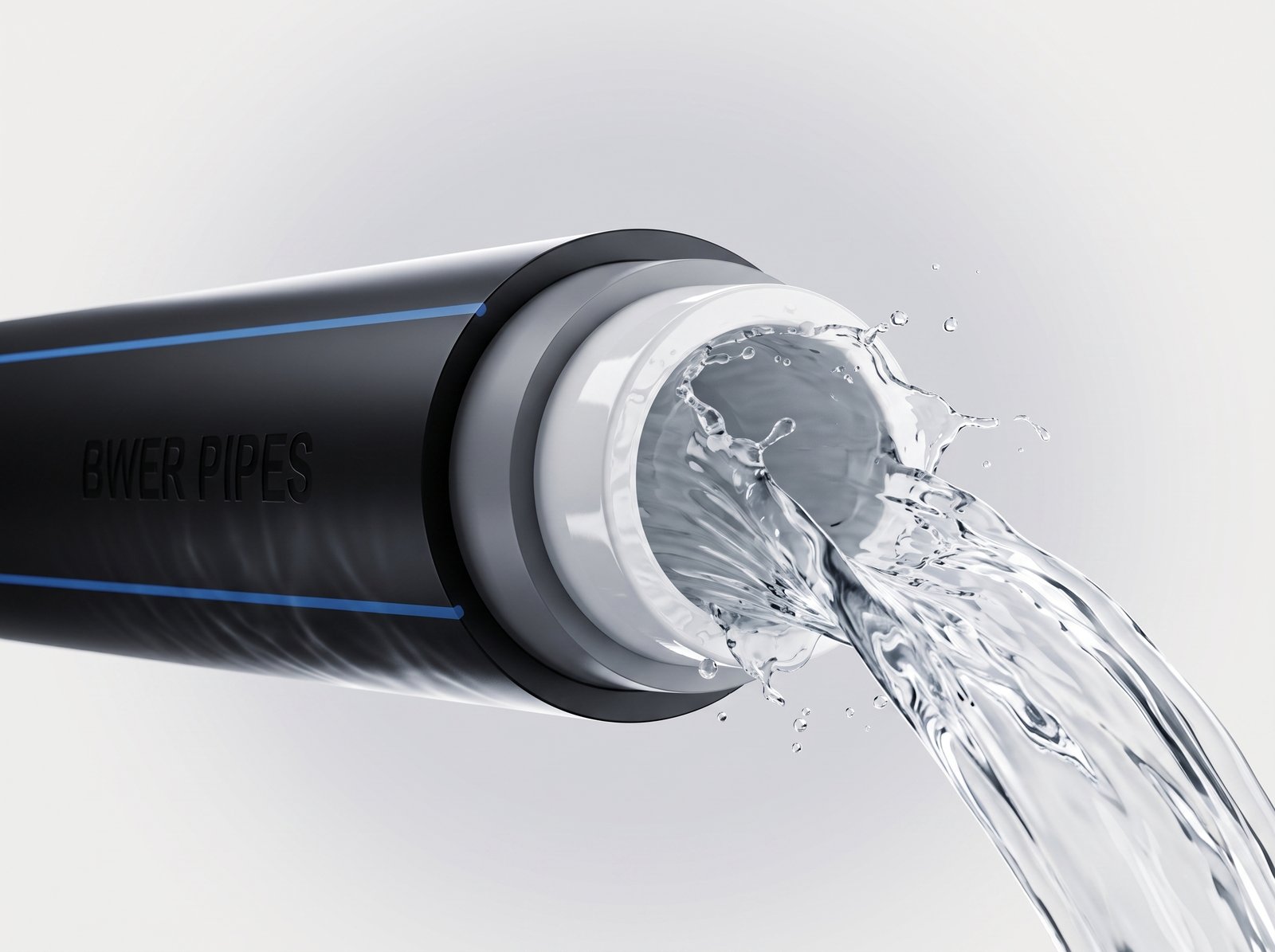

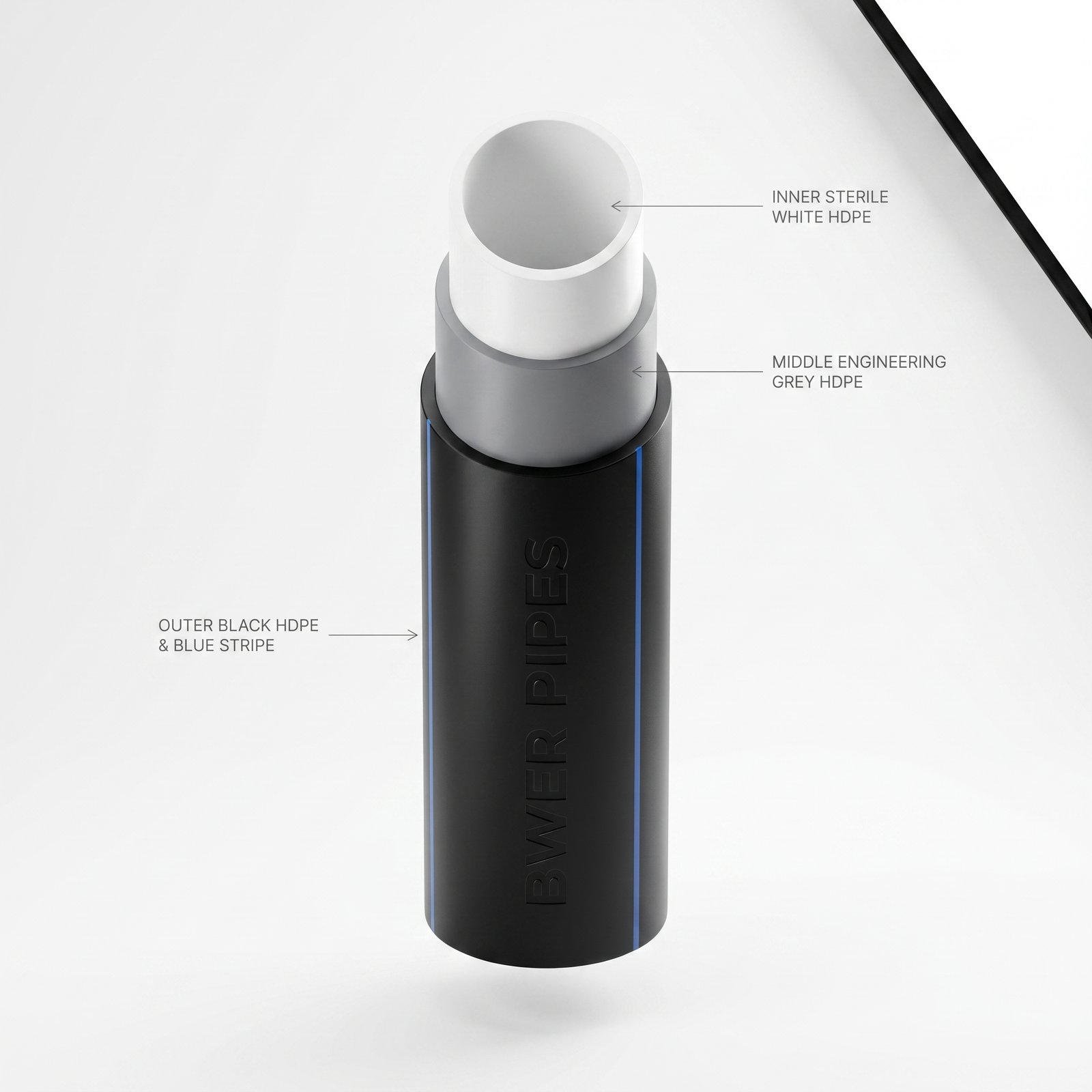

3-Layer Co-Extruded Pipe with Virgin White Food-Grade Inner Liner
Bwer Pipes introduces Iraq's most hygienic piping innovation: 3-Layer Co-Extruded HDPE Coiled Pipes featuring a 100% Virgin White Food-Grade Inner Liner. Extruded simultaneously through German multi-manifold feedblocks, this advanced tri-layer architecture combines total health safety with high structural durability.
Made from 100% unpigmented virgin PE100 polymer. Certified free of heavy metals, plasticizers, and toxic leachates. Zero alteration of water taste or smell.
Mirror-smooth inner white surface prevents bacterial adhesion, biofilm formation, and mineral incrustation, keeping drinking water 100% pure.
Bright white internal bore provides maximum contrast for municipal camera robots and laser scanners during routine pipeline maintenance across Iraq.
Ideal for city potable water mains, dairy & juice processing plants, bottling facilities, and high-efficiency organic agricultural greenhouses across Iraq.
Custom Coiling Formats & Continuous Roll Lengths (50m to 500m)
Extruded and wound using automated German tension-controlled drums for compact 16mm–32mm rolls up to heavy 110mm–160mm industrial steel drum reels across Iraq.
Long Continuous Coils
Extruded up to 400m continuous length on automated dual-spindle winders with constant torque control to prevent ovality deformation.
Mid-Range Continuous Coils
Extruded from 50m to 200m continuous rolls with ultrasonic length counters and 4-point radial strapping for rapid field deployment.
Large Diameter Coils
Extruded in 50m to 100m rolls on collapsible hydraulic drums with mandatory cold bending radius limiters (R ≥ 20 × OD).
Industrial Drum Reels
Spooled onto heavy motorized steel transport reels for large municipal trunk lines and oilfield installations.
Technical Dimension Matrix (16mm – 160mm | 6 Bar to 25 Bar)
Comprehensive wall thickness (en in mm) and mass weight (w in kg/m) specification table for PE100 Polyethylene (HDPE) coiled pipe rolls across all hydrostatic pressure ratings (PE100 Minimum Required Strength MRS = 10.0 MPa, Design Stress σs = 8.0 MPa).
| Outer Diam. (OD) | PN6 (6 Bar) SDR 26 |
PN8 (8 Bar) SDR 21 |
PN10 (10 Bar) SDR 17 |
PN12.5 (12.5 Bar) SDR 13.6 |
PN16 (16 Bar) SDR 11 |
PN20 (20 Bar) SDR 9 |
PN25 (25 Bar) SDR 7.4 |
Standard Coils | Inner Radius |
|---|---|---|---|---|---|---|---|---|---|
| 16 mm | — | — | — | 1.8mm 0.08 kg/m | 1.8mm 0.09 kg/m | 2.0mm 0.10 kg/m | 2.3mm 0.11 kg/m | 200m / 300m / 500m | 0.60 m |
| 20 mm | — | — | — | 1.8mm 0.11 kg/m | 2.0mm 0.12 kg/m | 2.3mm 0.14 kg/m | 3.0mm 0.17 kg/m | 200m / 300m / 500m | 0.70 m |
| 25 mm | — | — | 1.8mm 0.14 kg/m | 2.0mm 0.15 kg/m | 2.3mm 0.17 kg/m | 2.8mm 0.20 kg/m | 3.5mm 0.24 kg/m | 100m / 200m / 300m | 0.80 m |
| 32 mm | — | 1.8mm 0.18 kg/m | 2.0mm 0.20 kg/m | 2.4mm 0.23 kg/m | 3.0mm 0.28 kg/m | 3.6mm 0.33 kg/m | 4.4mm 0.39 kg/m | 100m / 200m / 300m | 0.90 m |
| 40 mm | 1.8mm 0.23 kg/m | 2.0mm 0.25 kg/m | 2.4mm 0.29 kg/m | 3.0mm 0.36 kg/m | 3.7mm 0.43 kg/m | 4.5mm 0.51 kg/m | 5.5mm 0.61 kg/m | 100m / 200m | 1.10 m |
| 50 mm | 2.0mm 0.31 kg/m | 2.4mm 0.37 kg/m | 3.0mm 0.45 kg/m | 3.7mm 0.55 kg/m | 4.6mm 0.66 kg/m | 5.6mm 0.79 kg/m | 6.9mm 0.95 kg/m | 100m / 200m | 1.30 m |
| 63 mm | 2.5mm 0.49 kg/m | 3.0mm 0.58 kg/m | 3.8mm 0.72 kg/m | 4.7mm 0.87 kg/m | 5.8mm 1.04 kg/m | 7.1mm 1.26 kg/m | 8.6mm 1.49 kg/m | 100m / 150m / 200m | 1.50 m |
| 75 mm | 2.9mm 0.67 kg/m | 3.6mm 0.82 kg/m | 4.5mm 1.01 kg/m | 5.6mm 1.23 kg/m | 6.8mm 1.46 kg/m | 8.4mm 1.78 kg/m | 10.3mm 2.12 kg/m | 100m / 150m | 1.70 m |
| 90 mm | 3.5mm 0.97 kg/m | 4.3mm 1.18 kg/m | 5.4mm 1.46 kg/m | 6.7mm 1.77 kg/m | 8.2mm 2.11 kg/m | 10.1mm 2.56 kg/m | 12.3mm 3.03 kg/m | 50m / 100m | 1.90 m |
| 110 mm | 4.2mm 1.42 kg/m | 5.3mm 1.77 kg/m | 6.6mm 2.17 kg/m | 8.1mm 2.62 kg/m | 10.0mm 3.13 kg/m | 12.3mm 3.80 kg/m | 15.1mm 4.53 kg/m | 50m / 100m | 2.20 m |
| 125 mm | 4.8mm 1.84 kg/m | 6.0mm 2.27 kg/m | 7.4mm 2.76 kg/m | 9.2mm 3.37 kg/m | 11.4mm 4.06 kg/m | 14.0mm 4.91 kg/m | 17.1mm 5.83 kg/m | 50m / 100m | 2.50 m |
| 140 mm | 5.4mm 2.31 kg/m | 6.7mm 2.83 kg/m | 8.3mm 3.46 kg/m | 10.3mm 4.22 kg/m | 12.7mm 5.09 kg/m | 15.7mm 6.16 kg/m | 19.2mm 7.32 kg/m | 50m / 100m | 2.70 m |
| 160 mm | 6.2mm 3.03 kg/m | 7.7mm 3.71 kg/m | 9.5mm 4.52 kg/m | 11.8mm 5.51 kg/m | 14.6mm 6.66 kg/m | 17.9mm 8.03 kg/m | 21.9mm 9.54 kg/m | 50m / 100m | 3.00 m |
Engineering Superiority & Market Leadership in Iraq
Why Iraqi Ministries, Municipal Engineers, International Oil Companies (IOCs), and Commercial Agriculture Developers choose Bwer Pipes PE100 Polyethylene (HDPE) coiled pipe rolls for Iraq's toughest terrain and weather conditions.
90% Reduction in Underground Joints
A single continuous 500m PE100 Polyethylene (HDPE) coiled pipe roll replaces up to 40 socket connections, eliminating 90% of potential joint leaks and saving millions in maintenance for municipal projects in Baghdad, Erbil, Basra, and Sulaymaniyah.
Certified for Iraqi Ministry Tenders
Fully compliant with ISO 4427-2, EN 12201-2, DIN 8074, and PAS 1075 standards. Pre-approved submittal packages for the Iraqi Ministry of Water Resources, Ministry of Construction & Housing, and Ministry of Oil projects.
55°C Summer Heat & Intense UV Endurance
Formulated with 2.5% ± 0.5% carbon black nanoparticles, engineered specifically to endure Iraq's scorching summer ambient temperatures exceeding 55°C and intense outdoor solar ultraviolet radiation without thermal degradation.
100% Saline Soil & Chemical Immunity
100% immune to electrochemical soil corrosion, high-sulfate soils, saline groundwater in Basra, and aggressive agricultural fertilizers, guaranteeing a 100-year continuous maintenance-free lifespan across Iraq.
Save 40% Trenching & Sand Import Costs
PE100-RC crack-resistant rolls enable trenchless Horizontal Directional Drilling (HDD) under Tigris & Euphrates riverbeds and direct backfill in native rocky soil without expensive imported sand bedding.
Fastest Order Delivery Across All Iraq
Direct factory dispatch from our high-capacity production plant in Kalar. Dedicated heavy transport trailers deliver continuous rolls to job sites in Erbil, Sulaymaniyah, Baghdad, Basra, Mosul, Kirkuk, and all 18 governorates within 24 to 48 hours.
Frequently Asked Questions (21 Core Engineering FAQs)
Everything municipal engineers, Iraqi ministry officials, oilfield contractors, and agricultural developers need to know about PE100 Polyethylene (HDPE) coiled pipe rolls.
01 What diameter range is manufactured for HDPE coils?
Bwer Pipes manufactures continuous PE100 Polyethylene (HDPE) coiled pipe rolls in outer diameters ranging from 16mm up to 160mm (16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 125mm, 140mm, and 160mm OD). Custom sizing is extruded upon request for major municipal tenders across Iraq.
02 What pressure classes (PN ratings) are available?
Our coils are extruded across 7 standard pressure ratings: PN6 (6 Bar), PN8 (8 Bar), PN10 (10 Bar), PN12.5 (12.5 Bar), PN16 (16 Bar), PN20 (20 Bar), and PN25 (25 Bar), engineered to handle both low-pressure drip lines and high-pressure oilfield feeds.
03 What is the maximum continuous coil length?
Depending on pipe diameter, Bwer Pipes supplies continuous joint-free coil lengths from 50 meters, 100 meters, 200 meters, 300 meters, up to 500 meters per coil roll. Continuous rolls eliminate 90% of underground socket joints.
04 How do coils withstand Iraq's summer heat (>55°C)?
All PE100 Polyethylene (HDPE) coiled pipe rolls are compounded with 2.5% ± 0.5% carbon black nanoparticles (particle size < 25nm) per ISO 6964 standards, guaranteeing zero thermal degradation under ambient summer temperatures exceeding 55°C.
05 Are coils suitable for Basra's saline groundwater?
Yes, 100% virgin bimodal PE100 polymer is chemically inert and 100% immune to electrochemical corrosion, high-sulfate soils, saline groundwater in Basra, and acidic effluents, ensuring over 100 years of maintenance-free service.
06 Can coils remain in direct outdoor sunlight?
Yes, our carbon-black UV-stabilized PE100 formulation provides over 50 years of continuous outdoor solar radiation endurance without UV photo-oxidation, embrittlement, or surface cracking.
07 Why choose HDPE coils for drip irrigation?
500m joint-free rolls allow rapid tractor unrolling across agricultural fields, eliminate underground joint leaks, resist aggressive liquid fertilizers, and lower pumping energy costs by up to 25% due to mirror-smooth interior walls (Hazen-Williams C = 150).
08 Are coils certified for municipal drinking water?
Yes, Bwer Pipes blue-striped and solid black PE100 coiled pipe rolls strictly comply with ISO 4427-2 and EN 12201-2 potable water standards. Extruded from non-toxic, heavy-metal-free virgin PE100 resins safe for human consumption.
09 Do you supply yellow-striped coils for gas pipelines?
Yes, Variant 02 features four integral co-extruded yellow identification stripes conforming to EN 1555 standards for municipal natural gas, methane, and flare gas distribution networks operating up to PN25 pressure.
10 Can coils be used for oilfield chemical injection?
Yes, rated up to PN25 operating pressure, Bwer Pipes PE100 coils are widely deployed by International Oil Companies (IOCs) in Basra, Kirkuk, and Erbil for crude oil gathering, produced water disposal, and chemical injection lines.
11 What is the minimum cold bending radius on-site?
At 20°C ambient temperature, the minimum cold bending radius is R ≥ 20 × OD. For example, a 110mm OD coil can be cold-bent on-site to a 2.2-meter radius without wall buckling or needing elbow fittings.
12 Why use PE100-RC for trenchless HDD river crossings?
PE100-RC (Resistance to Crack) is PAS 1075 Type 1 & Type 2 certified with FNCT > 8,760 hours, resisting Slow Crack Growth (SCG) caused by point-load scratches during Horizontal Directional Drilling under Tigris and Euphrates riverbeds.
13 Can PE100-RC be backfilled without sand bedding?
Yes, PAS 1075 certification permits sandless backfill bedding directly in native excavated rocky ground across Kurdistan and Central Iraq, saving up to 40% in trenching labor and sand import costs.
14 How are HDPE coiled pipe rolls joined on-site?
Coiled pipes can be seamlessly joined using electrofusion fittings, butt-fusion welding machines, or quick-connect mechanical compression fittings for smaller agricultural drip sizes (16mm-63mm).
15 How do coils absorb water hammer shock surges?
HDPE's low elastic modulus enables PE100 coils to flex and surge-absorb hydraulic water hammer shock waves up to 1.5 times the nominal pressure rating without wall rupture or joint disconnection.
16 Does Bwer Pipes use virgin or recycled polymer?
Bwer Pipes uses 100% prime virgin bimodal PE100 and PE100-RC polymer resins sourced exclusively from certified global suppliers (Sabic and Borealis). We strictly reject recycled plastic scrap.
17 What international standards do coils meet?
Our production lines comply strictly with ISO 4427-2, EN 12201-2, DIN 8074/8075, EN 1555 (Gas), and PAS 1075 (Crack Resistant). Full 3.1 quality inspection certificates accompany every shipment.
18 What is the operational lifespan of PE100 coils?
Extruded from virgin bimodal PE100 polymer, our coiled pipes are engineered for a continuous operational lifespan exceeding 100 years under standard operating temperatures and pressures.
19 How fast can Bwer Pipes deliver orders in Iraq?
Operating Iraq's highest-capacity German extrusion plant in Kalar, we maintain ready stock and guarantee fast nationwide logistics dispatch within 24 to 48 hours to all 18 Iraqi governorates.
20 Can you produce custom coil lengths for tenders?
Yes, our automated tension coiling drums can be customized to produce specific continuous coil lengths, drum reel dimensions, and co-extruded color stripe combinations for major municipal and ministry tender projects.
21 How to request submittals or price quotes?
Contact our sales and engineering department directly via WhatsApp (+964 770 654 5544) or email info@bwerpipes.com for instant technical submittals, ISO certificates, datasheets, and factory wholesale quotes across Iraq.
